Main features
Multi-stage galvanic isolation for signal and shielding – eliminates EMI, RFI, and ground loops.
Integrated high-frequency filter reduces jitter and residual noise from the network.

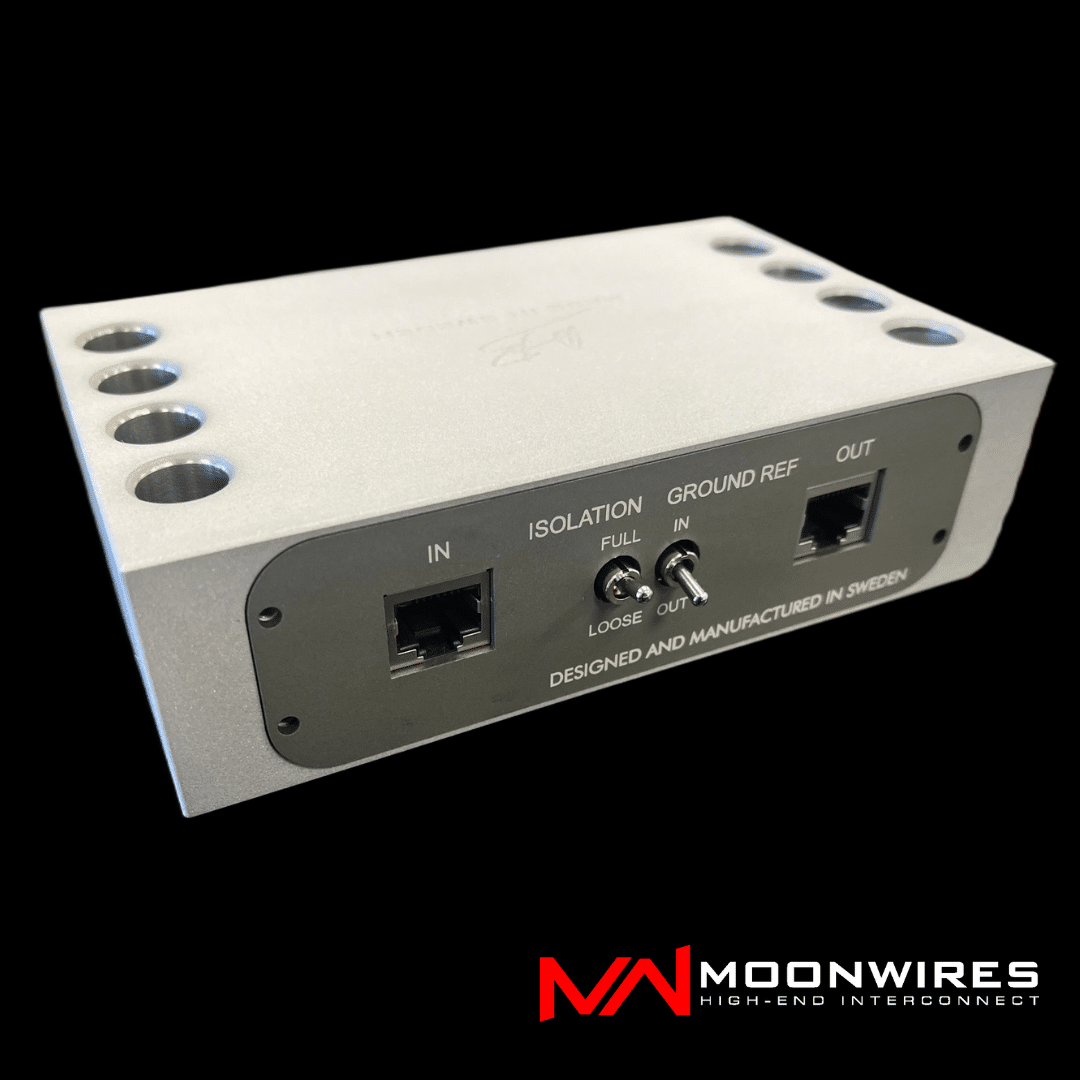

Two configuration switches:
• Switch 1 – Shield reference (input/output)
• Switch 2 – Isolation mode (Loose/Full).
Connector-only architecture, no internal wiring, compatible with all high-quality Ethernet cables.
Precisely shielded RJ45 connectors ensure stable contact and controlled impedance.

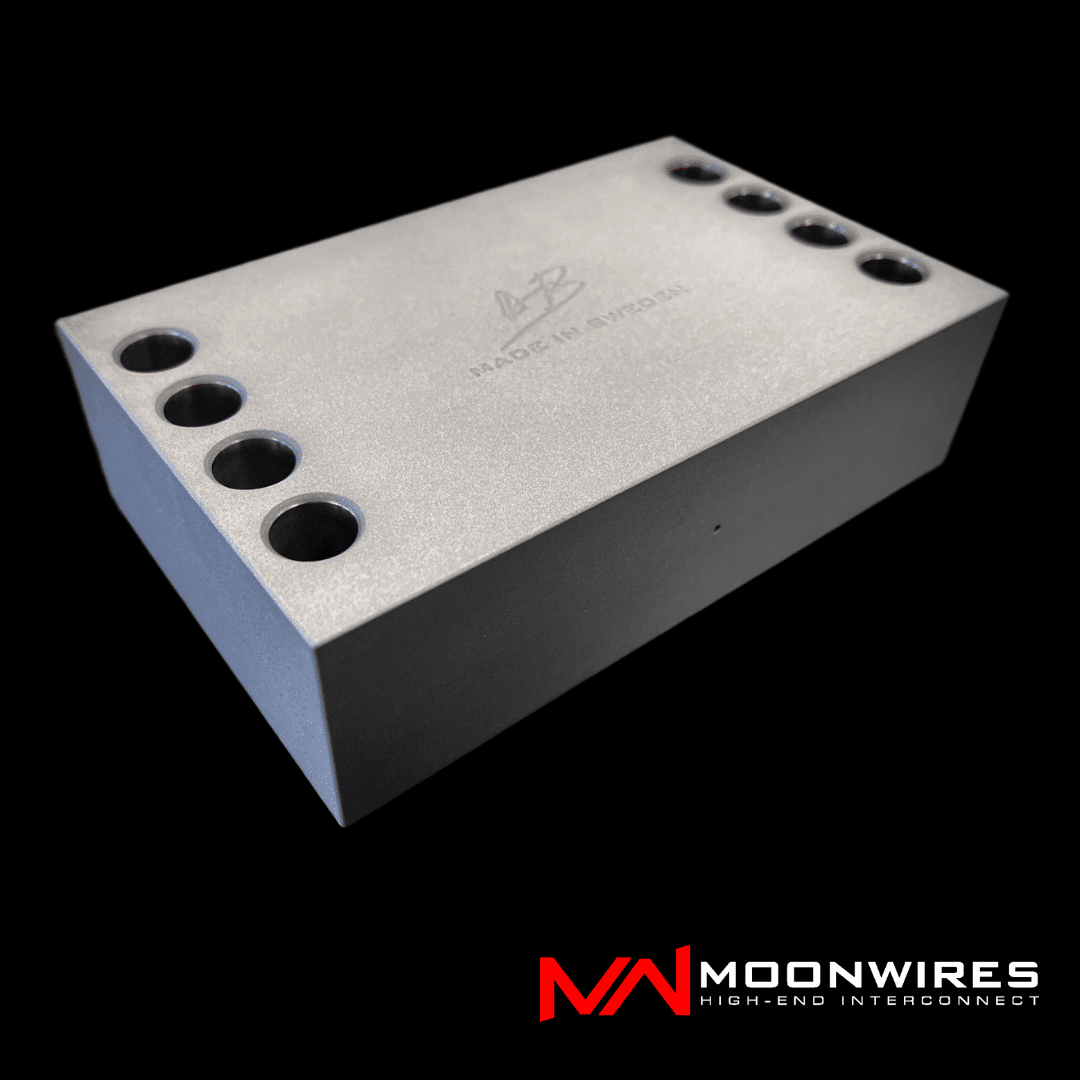

Non-magnetic aluminum housing, milled from a single block, for optimal mechanical and electromagnetic isolation.
Vibration-decoupled internal mounting, dampened by viscoelastic material to reduce vibration and microphony.
Completely passive operation, no external power supply or signal conversion required.
Dimensions: 149 × 93 × 42 mm.
